36-Yard Zero for the AR-15: Benefits and Reference Cards
Why does a distance as specific as 36 yards come up so often in discussions of AR-15 zeros? The answer combines a documented Marine Corps connection, a convenient short-distance reference, and the appeal of understanding your bullet’s trajectory.

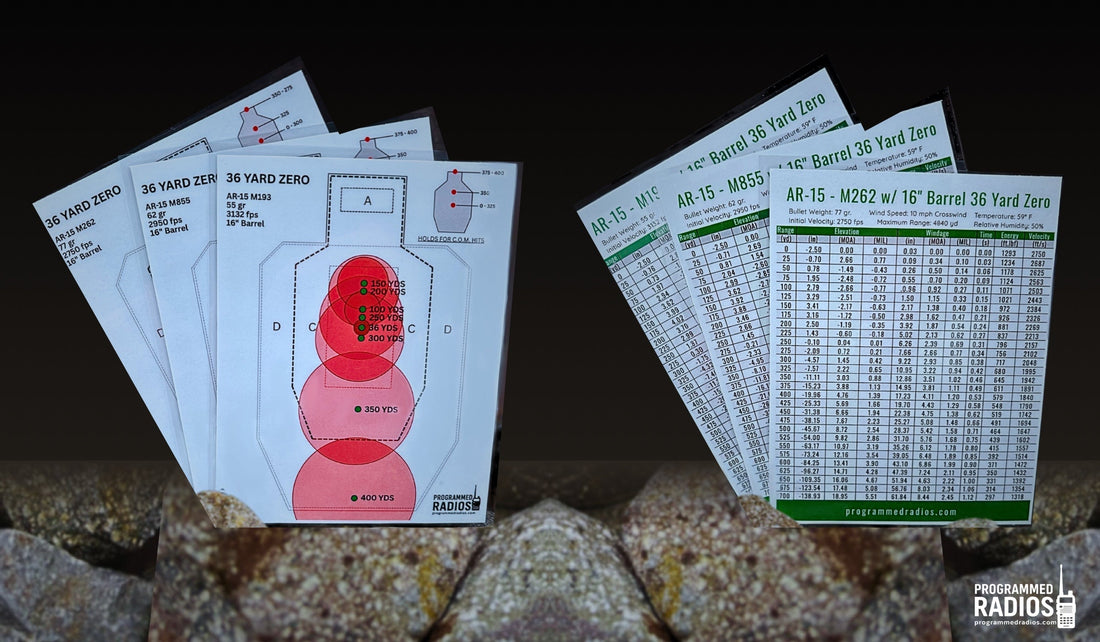

Our cards put that reference information into two forms: a visual front and a numerical table on the reverse. We’ll look at why this zero distance is popular and how understanding your zero and your bullet’s trajectory can make you a more informed rifleman.
The Marine Corps connection
The 36-yard zero’s Marine Corps connection comes from M16A2 rifle training. The Corps began transitioning to the M16A2 in the early 1980s. [4] By 1995, the Marine Corps manual Field Firing for the M16A2 Rifle (FMFM 0-9) documented the 36-yard reference in Chapter 6. [1]
The chapter presents the 36-yard reference as a field-expedient option when a longer range isn’t available. That practical training background helps explain the association between the Marine Corps and the 36-yard zero. [1]
The manual uses BZO (battlesight zero) to mean the rifle’s established sight settings, and emphasizes the importance of maintaining that reference.
Why the 36-yard zero appeals to shooters
The 36-yard zero offers a practical short-distance reference when a longer range isn’t available. That convenience is part of its history. [1]
Another draw is the relatively contained vertical path associated with the traditional 300-yard reference. Our cards make that concept visible: the front illustrates how the modeled trajectory moves above and below the sight line, and the back shows the matching data.
Two intersections do not mean a flat path
The solid line in the graphic below represents your straight line of sight. The dashed curve represents the bullet’s path, which curves downward under gravity throughout its flight. [2]
The bullet’s path can cross the sight line twice: once as it rises relative to that line and again as it descends. Between those intersections, the path sits above the sight line; farther along, it falls below. Those crossings mark two points of alignment along a continuously curved path.
The historical 36-yard/300-yard pairing refers to those two points of alignment with the sight line—one nearer and one farther away. [1] If that connection seems counterintuitive, it can be difficult to picture from two distances alone. The target graphic below gives the idea a visual form, bringing the card’s labeled positions together so you can see how the modeled path changes across distances.
What the front of the card shows
The front of the card puts the reference information into a visual form. It uses a USPSA-style target silhouette, historically known as the Metric or IPSC Metric target, with its recognizable head box and lettered zones. [3]
The green marks and their distance labels show how the modeled positions change across distances. They are the visual counterpart to the matching figures on the back of the card.
The shaded circles show a 3 MOA (minutes of angle) reference area. MOA describes angular size and can be used to express the spread of a group of shots. That spread reflects the combined effects of the shooter’s consistency, the rifle’s mechanical precision, ammunition consistency and environmental conditions. The quality of the rifle is one part of that combination, so different shooters and setups can produce different results. The circles illustrate variation around the card’s modeled positions; they don’t mean every shot will land on the dot or stay inside the circle. As distance increases, the same angular reference covers a larger physical area. [5] [6]
The “Holds for C.O.M. Hits” panel
The upper-right corner of the card contains a smaller panel labeled “Holds for C.O.M. Hits.” C.O.M. stands for center of mass.
Its simplified silhouette, colored markers and range labels bring the card’s existing reference information into a compact view. The enlarged version beside this text makes those details easier to see.
The annotations belong to the configuration printed on that card. Its barrel length, ammunition, initial velocity and zero provide the context for this panel, just as they do for the rest of the card.
The back of the card: A closer look at the data
The front of the card gives you a visual picture of the modeled trajectory. The back presents the corresponding numbers in a table, connecting the labeled positions on the target graphic to the data behind them.
Shown below is the matching back of the 55-grain, 16-inch, 36-yard-zero card pictured above. Both sides describe the same configuration, so you can move between the illustration and its numerical reference.
Get the printable PDFs or the laminated pack
I made these cards to keep the visual reference and matching data together in a format you can take with you. Get the free printable PDFs by email and print your own copies.
Keep a laminated set in your range bag, chest rig, plate carrier or backpack so the reference is close at hand. The 16-inch / 36-yard-zero pack includes three cards: 55 gr, 62 gr and 77 gr.
Sources
- U.S. Marine Corps, FMFM 0-9, Field Firing for the M16A2 Rifle, June 23, 1995: dated foreword and Chapter 6, sections 6001–6002. Government-authored manual pages preserved by an independent archive.
- Hornady, External Ballistics. General explanation of trajectory and line of sight.
- USPSA National Range Officers Institute, From the Beginning: The evolution of the USPSA Target, July 20, 2023. Source for the historical Metric/IPSC Metric and USPSA target naming.
- Danny J. Crawford and Ann A. Ferrante, The Marine Corps in 1982, U.S. Naval Institute Proceedings, May 1983. Contemporary history of the M16A2 transition; cited for the rifle’s approval and planned replacement program, not for the origin of the 36-yard method.
- NIST, Special Publication 330, Section 4, Table 8. Definition of the minute as a unit of plane angle.
- Michael McTee, Jordan Hampton and Philip W. Ramsey, How many shots are enough? Optimizing precision measurements when testing lead-free ammunition, Wildlife Biology, May 7, 2026. Source for the combined roles of the rifle, ammunition, shooter and conditions in observed variation.
